Products // Mobile Auger Conveyor Operated by
Tractor |
| |
| |
| |
|
|
|
KA-03

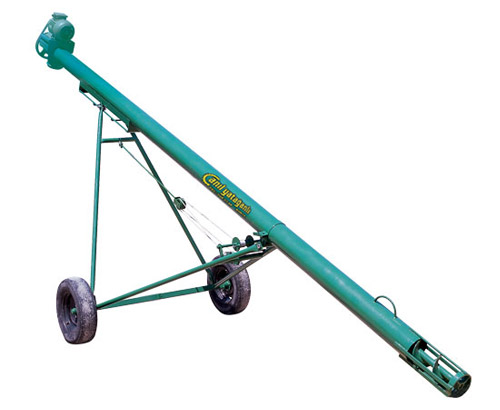

Mobile Auger Conveyor
Operated by Tractor 8 - 10 mt
Mobile auger conveyor is
used conveying every
king of materials with
adjustable height to up
level. This conveyor is
made by 6" pipe and it
has 8-10 m lenght. It is
operated by P.T.O via
shaft attached to the
rear spindle. It can be
operated by diesel-engine
or electrical motor (380
volt three phase)
according to customer
demands. |
| |
|
Technical Dimensions |
|
Type |
8 M |
10 M |
|
Length (mm) |
8000 |
10000 |
|
Weight (mm) |
1650 |
1650 |
|
Max. Conveying Height
(m) |
4000 |
4500 |
|
Min. Conveying Height
(m) |
1530 |
2370 |
|
Capacity of Covering (T/h) |
25-30 |
25-30 |
|
Weight of Machine (kg) |
330 |
380 |
|
Weight of Machine (kg) |
450 |
450 |
|
Power Motor (Hp) |
3,5 |
7,5 |
|
|
|
|
|
|
|
 |
|
 |
|
