Products // Disc Plough

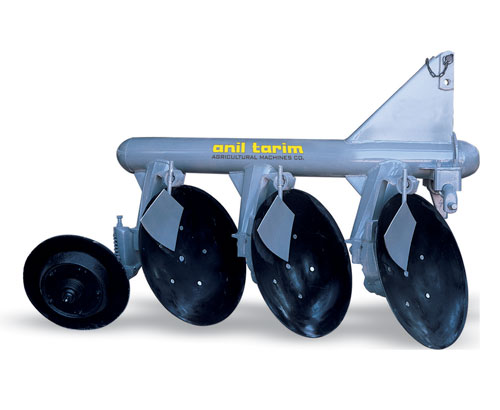

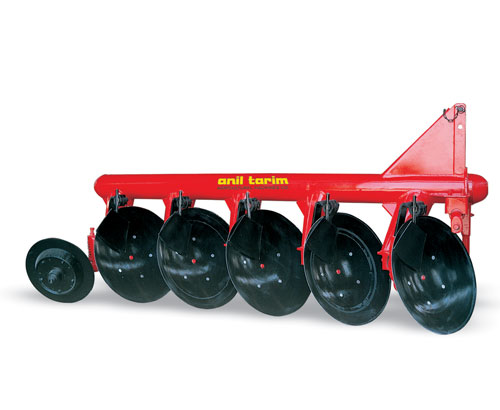

Disc Plough

With this plough you don't need to change the lids according to the kind of ground like in the lidded ploughs.Instead of this you can easily regulate the way and situatin of the discs in the disc ploughs.



Technical Dimensions

Type

2 Discs

3 Discs 4 Discs 5 Discs

Total Length   (mm)

1355

2330 2520 2520

Total  Width    (mm)

1115

1265 1420 1420

Total Height    (mm)

1235

1235 1235 1235

Total Weight    (kg)

310

400 470 470

Disc Diameter   (mm)

660-700

660-700

660-700

660-700

Disc Distance   (mm)

530

530 530 530

Working
Width

660

660 990 1320 1320

700

700 1050 1400 1750



There is less chance to choke in disc ploughs with seed or manure. In rocked area discs are wearied less then lidded ploughs. lidded ploughs are entering  to the ground like dagger because of this there can be rolling over the stones. In disc ploughs if you penetrate in an improper time there is no muddy position  in high moisture. But in the lidded plough you need less drawing power like %25 -30 then lidded plough.

Chassis is made of 120 x 120 x 8 mm square profile or 6" x5 mm pipe and the type of squareprofile chassis you can increase the number of the disc count when you want.
